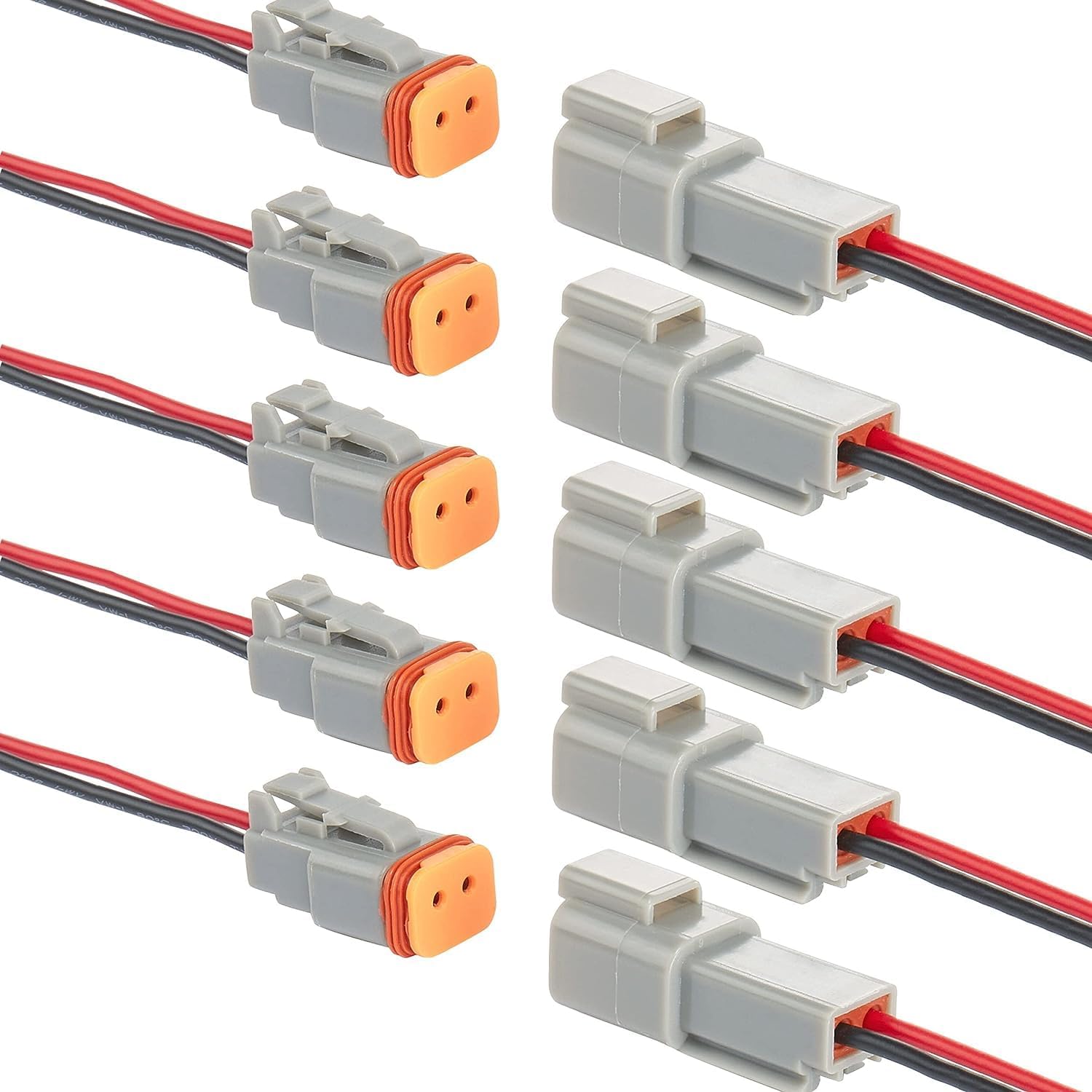

MUYI 10 Kit 2 Pin Way DT04-2P DT06-2S Waterproof Connector 13 Amps Continuous 14-18 AWG DT Series Connector
Product details
| Management number | 237359034 | Release Date | 2026/07/10 | List Price | US$6.40 | Model Number | 237359034 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Wire Size: 14, 16, 18. Wire Gauge: 14-18 AWG. Current Rating: 13 Amps Continuous.
- Operating Temperature: 14°F (-10°C) to +176°F (+80°C). Material: Plastic.
- Insulation: .088"-.145". IP Rating: IP67. Connector Style: Receptacle.
- Features: Accepts contact size 16 (13 amps), 14-18 AWG, 2, 3, 4, 6, 8, and 12 cavity arrangements. In-line, flange, or PCB mount. Rectangular, thermoplastic housing. Integrated latch for mating. Wedgelocks assure contact alignment and retention.
- Package Included: 10x Male housing, 10x Female housing, 10x Orange wedgelock, 10x Green wedgelock, 20x Male contact, 20x Female contact.
| UPC | 717080458736 |
|---|---|
| ASIN | B01G9XY1CE |
| Color | Grey, Green, Orange |
| Model | 20905 |
| Terminal | Pin Terminal |
| Brand Name | MUYI |
| Part Number | 10xSKU20905#2P |
| Manufacturer | MUYI |
| Material Type | PA66 nylon |
| Connector Type | Quick Connect, Quick Disconnect |
| Maximum Voltage | 1500 Volts |
| Number of Items | 5 |
| Connector Gender | Male/Female |
| Contact Material | Copper |
| Specification Met | ISO 9001 |
| Temperature Rating | -40℃~+125℃ |
| Included Components | Female plugs, Male plugs, Terminals, Wegelocks |
| Insulation Material Type | PA66 Nylon |
| Item Dimensions L x W x H | 2.63"L x 0.99"W x 0.75"H |
